HSC MAX™
MAXIMUM STRENGTH & MAXIMUM RELIABILITY
MAKING THE RIGHT CONNECTION
HSC MAX™
With a heritage of over 30 years and field-proven success across countless applications, HSC continues to set the standard for premium connections. Designed for advanced applications, HSC MAX™ excels under the most demanding conditions, providing gas sealability, compression resistance and excellent performance in both tension and bending scenarios.
HSC MAX™ delivers reliable performance that maximizes efficiency.

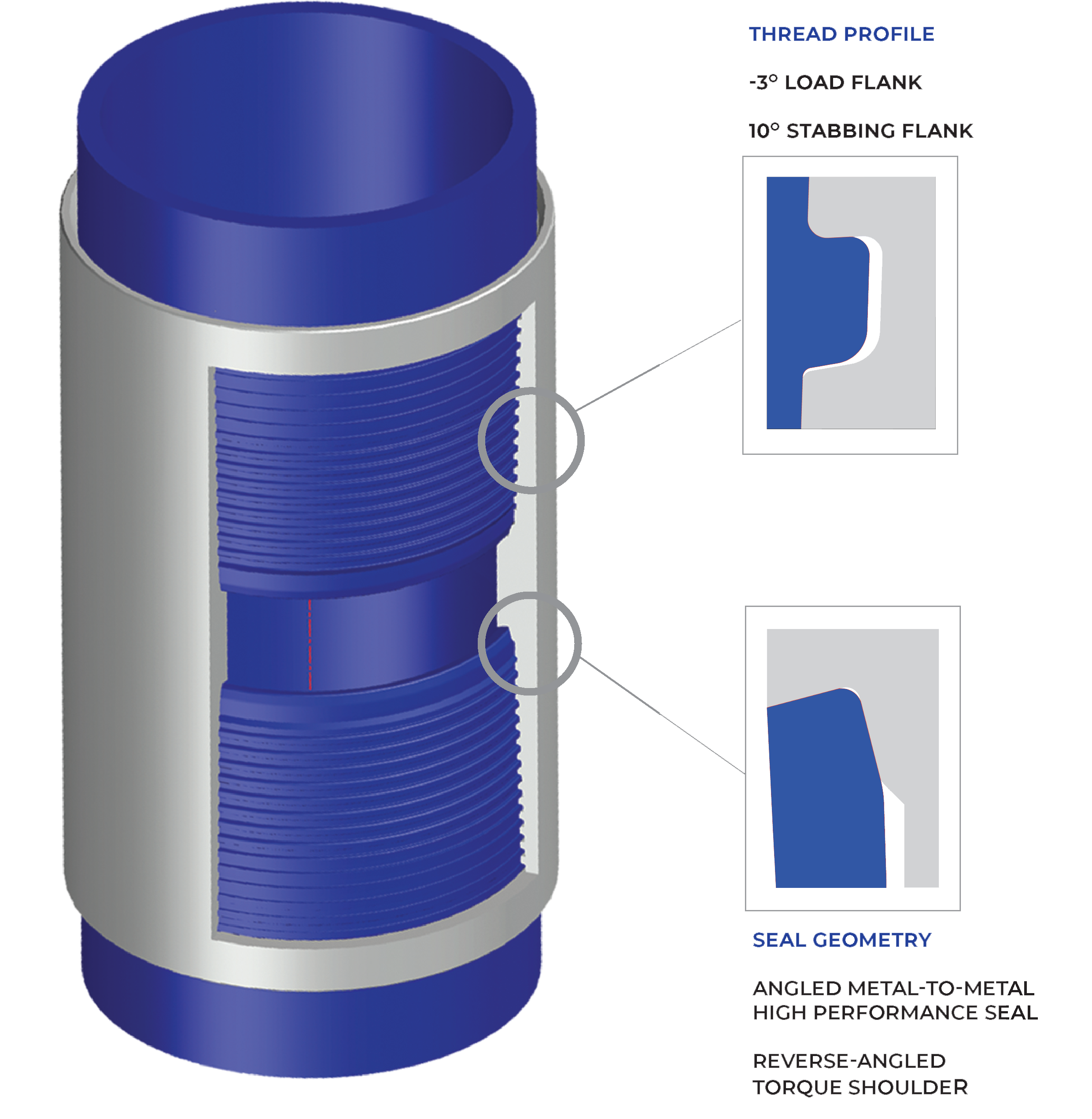

HSC MAX™ Premium Connection Provides:
- Superior Gas Sealability: Ensuring leak-proof operations under extreme conditions.
- Exceptional Compression Resistance: Withstanding up to 100% PBYS.
- Robust Performance: Stronger than the pipe in tension and capable of bending up to 30°/100 feet while maintaining sealability.
- Extensive Range: Available in sizes from 2 3/8” to 16″ and material yield strength from 80ksi to 140ksi.
- Versatile Applications: Ideal for production casing, tubing, liners, tie-backs, and HP/HT well designs.
Explore our extensive range of sizes and grades, engineered to meet the needs of the most critical operations.
TECHNICAL INFORMATION
| SIZE | WEIGHT (lb/ft) | WALL THICKNESS (in) | DATA SHEET |
|---|---|---|---|
| 2 3/8 | 4.60 | 0.190 | View |
| 2 3/8 | 5.10 | 0.218 | View |
| 2 3/8 | 5.80 | 0.254 | View |
| 2 3/8 | 6.30 | 0.28 | View |
| 2 3/8 | 6.60 | 0.295 | View |
| 2 3/8 | 7.35 | 0.336 | View |
| 2 7/8 | 6.40 | 0.217 | View |
| 2 7/8 | 7.80 | 0.276 | View |
| 2 7/8 | 8.60 | 0.308 | View |
| 2 7/8 | 9.35 | 0.340 | View |
| 2 7/8 | 9.80 | 0.362 | View |
| 2 7/8 | 10.50 | 0.392 | View |
| 2 7/8 | 10.70 | 0.405 | View |
| 2 7/8 | 11.50 | 0.440 | View |
| 3 1/2 | 6.50 | 0.170 | View |
| 3 1/2 | 7.70 | 0.216 | View |
| 3 1/2 | 9.20 | 0.254 | View |
| 3 1/2 | 10.20 | 0.289 | View |
| 3 1/2 | 12.70 | 0.375 | View |
| 3 1/2 | 13.70 | 0.413 | View |
| 3 1/2 | 14.30 | 0.430 | View |
| 3 1/2 | 14.70 | 0.449 | View |
| 3 1/2 | 15.50 | 0.476 | View |
| 3 1/2 | 16.70 | 0.510 | View |
| 3 1/2 | 18.35 | 0.575 | View |
| 4'' | 8.20 | 0.190 | View |
| 4'' | 9.50 | 0.226 | View |
| 4'' | 10.90 | 0.262 | View |
| 4'' | 11.60 | 0.286 | View |
| 4'' | 13.20 | 0.330 | View |
| 4'' | 14.80 | 0.380 | View |
| 4'' | 16.10 | 0.415 | View |
| 4'' | 16.50 | 0.430 | View |
| 4'' | 18.90 | 0.500 | View |
| 4'' | 22.20 | 0.610 | View |
| 4 1/2'' | 10.50 | 0.224 | View |
| 4 1/2'' | 11.60 | 0.250 | View |
| 4 1/2'' | 12.60 | 0.271 | View |
| 4 1/2'' | 13.50 | 0.290 | View |
| 4 1/2'' | 15.10 | 0.337 | View |
| 4 1/2'' | 17.00 | 0.380 | View |
| 4 1/2'' | 17.70 | 0.402 | View |
| 4 1/2'' | 18.90 | 0.430 | View |
| 4 1/2'' | 21.50 | 0.500 | View |
| 4 1/2'' | 23.70 | 0.560 | View |
| 5 | 15.00 | 0.296 | View |
| 5 | 18.00 | 0.362 | View |
| 5 | 20.30 | 0.408 | View |
| 5 | 20.80 | 0.422 | View |
| 5 | 21.40 | 0.437 | View |
| 5 | 23.20 | 0.478 | View |
| 5 | 24.10 | 0.500 | View |
| 5 1/2 | 14.00 | 0.244 | View |
| 5 1/2 | 15.50 | 0.275 | View |
| 5 1/2 | 17.00 | 0.304 | View |
| 5 1/2 | 20.00 | 0.361 | View |
| 5 1/2 | 23.00 | 0.415 | View |
| 5 1/2 | 26.00 | 0.476 | View |
| 5 1/2 | 26.80 | 0.500 | View |
| 5 1/2 | 28.40 | 0.530 | View |
| 5 1/2 | 29.70 | 0.562 | View |
| 5 3/4 | 18.10 | 0.304 | View |
| 5 3/4 | 19.70 | 0.335 | View |
| 5 3/4 | 21.80 | 0.375 | View |
| 6 5/8 | 20.00 | 0.288 | View |
| 6 5/8 | 23.20 | 0.330 | View |
| 6 5/8 | 24.00 | 0.352 | View |
| 6 5/8 | 28.00 | 0.417 | View |
| 6 5/8 | 32.00 | 0.475 | View |
| 6 5/8 | 36.70 | 0.562 | View |
| 7 | 23.00 | 0.317 | View |
| 7 | 26.00 | 0.362 | View |
| 7 | 29.00 | 0.408 | View |
| 7 | 32.00 | 0.453 | View |
| 7 | 35.00 | 0.498 | View |
| 7 | 38.00 | 0.540 | View |
| 7 | 41.00 | 0.590 | View |
| 7 | 42.70 | 0.625 | View |
| 7 3/4 | 46.10 | 0.595 | View |
| 7 5/8 | 26.40 | 0.328 | View |
| 7 5/8 | 29.70 | 0.375 | View |
| 7 5/8 | 33.70 | 0.430 | View |
| 7 5/8 | 35.80 | 0.465 | View |
| 7 5/8 | 39.00 | 0.500 | View |
| 7 5/8 | 42.80 | 0.562 | View |
| 7 5/8 | 45.30 | 0.595 | View |
| 7 5/8 | 47.10 | 0.625 | View |
| 8 5/8 | 36.00 | 0.400 | View |
| 8 5/8 | 40.00 | 0.450 | View |
| 8 5/8 | 44.00 | 0.500 | View |
| 8 5/8 | 49.00 | 0.557 | View |
| 8 5/8 | 52.00 | 0.595 | View |
| 9 5/8 | 36.00 | 0.352 | View |
| 9 5/8 | 40.00 | 0.395 | View |
| 9 5/8 | 43.50 | 0.435 | View |
| 9 5/8 | 47.00 | 0.472 | View |
| 9 5/8 | 53.50 | 0.545 | View |
| 9 5/8 | 58.40 | 0.595 | View |
| 9 7/8 | 68.90 | 0.700 | View |
| 9 7/8 | 70.50 | 0.720 | View |
| 9 7/8 | 72.00 | 0.725 | View |
| 10 3/4 | 45.50 | 0.400 | View |
| 10 3/4 | 51.00 | 0.450 | View |
| 10 3/4 | 55.50 | 0.495 | View |
| 10 3/4 | 60.70 | 0.545 | View |
| 10 3/4 | 65.70 | 0.595 | View |
| 10 3/4 | 71.10 | 0.650 | View |
| 11 3/4 | 54.00 | 0.435 | View |
| 11 3/4 | 60.00 | 0.489 | View |
| 11 3/4 | 65.00 | 0.534 | View |
| 11 3/4 | 71.00 | 0.582 | View |
| 11 7/8 | 67.80 | 0.550 | View |
| 13 3/8'' | 54.50 | 0.380 | View |
| 13 3/8'' | 61.00 | 0.430 | View |
| 13 3/8'' | 68.00 | 0.480 | View |
| 13 3/8'' | 72.00 | 0.514 | View |
| 13 3/8'' | 77.00 | 0.550 | View |
| 13 3/8'' | 80.70 | 0.580 | View |
| 13 3/8'' | 85.00 | 0.608 | View |
| 13 5/8'' | 88.20 | 0.625 | View |
| 14'' | 82.50 | 0.562 | View |
| 14'' | 86.00 | 0.600 | View |
| 14'' | 93.00 | 0.650 | View |
| 14'' | 96.90 | 0.670 | View |
| 14'' | 100.00 | 0.700 | View |
| 14'' | 106.00 | 0.750 | View |
| 14'' | 114.00 | 0.800 | View |
| 15'' | 92.50 | 0.580 | View |
| 16'' | 84.00 | 0.495 | View |
| 16'' | 95.00 | 0.566 | View |
